How to Install Cavity Slider Pocket Door

CS Cavity Slider Pocket Door 4" Frame

Cavity Sliders

$980.00

Size:

3'0" x 6'8" $780 3'0" x 8'0" $855 4’0” x 8’0” $955

Carriage Pack:

M6 (200lb) 1 Track Stop (NO SOFT-STOP) + $200 DKM0611 Soft-Stop Double Open & Close Action + 1 Track Stop (200lbs) + $660 DKS0711

Variant

FREE SHIPPING ON ALL CAVITY SLIDER ORDERS

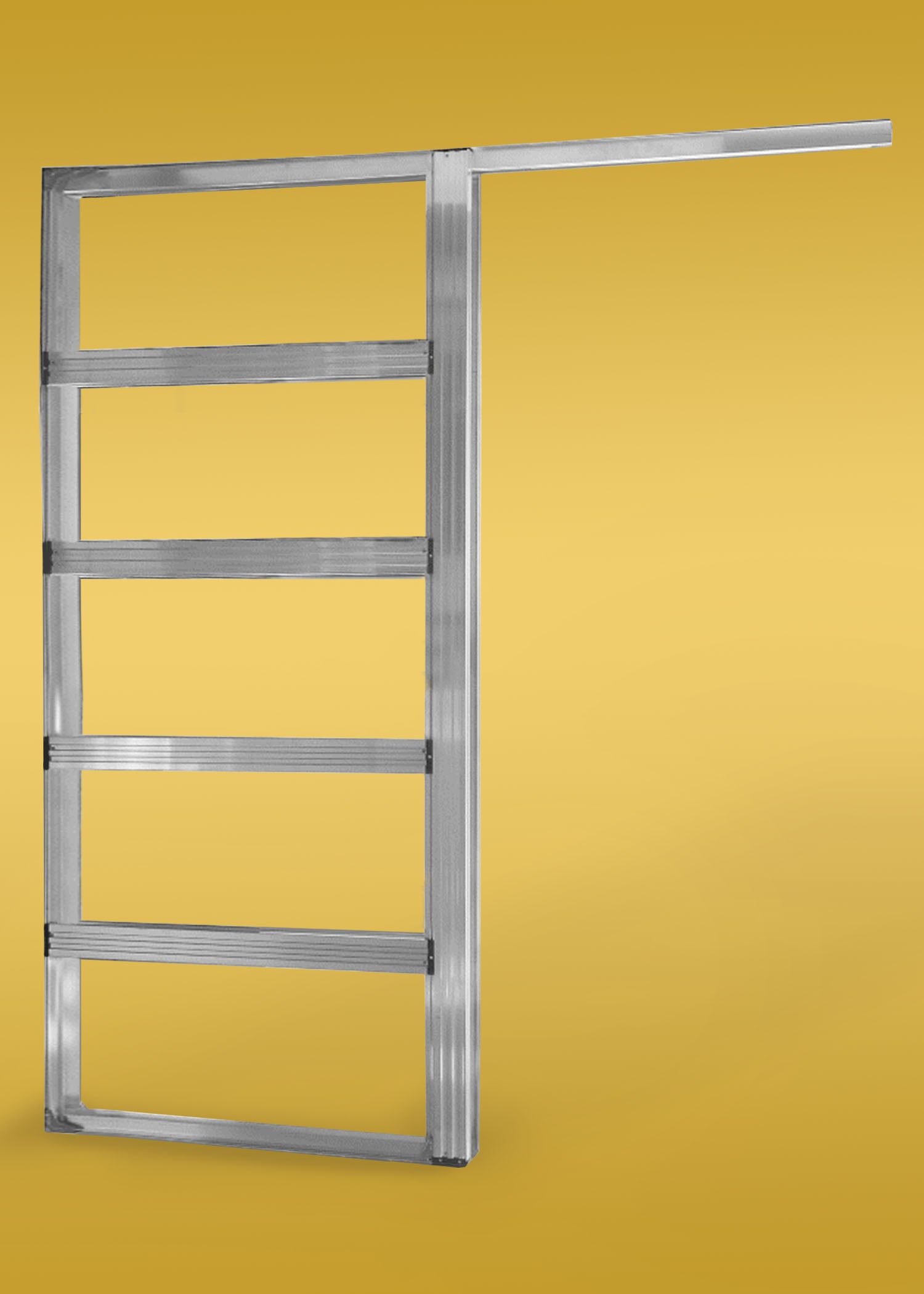

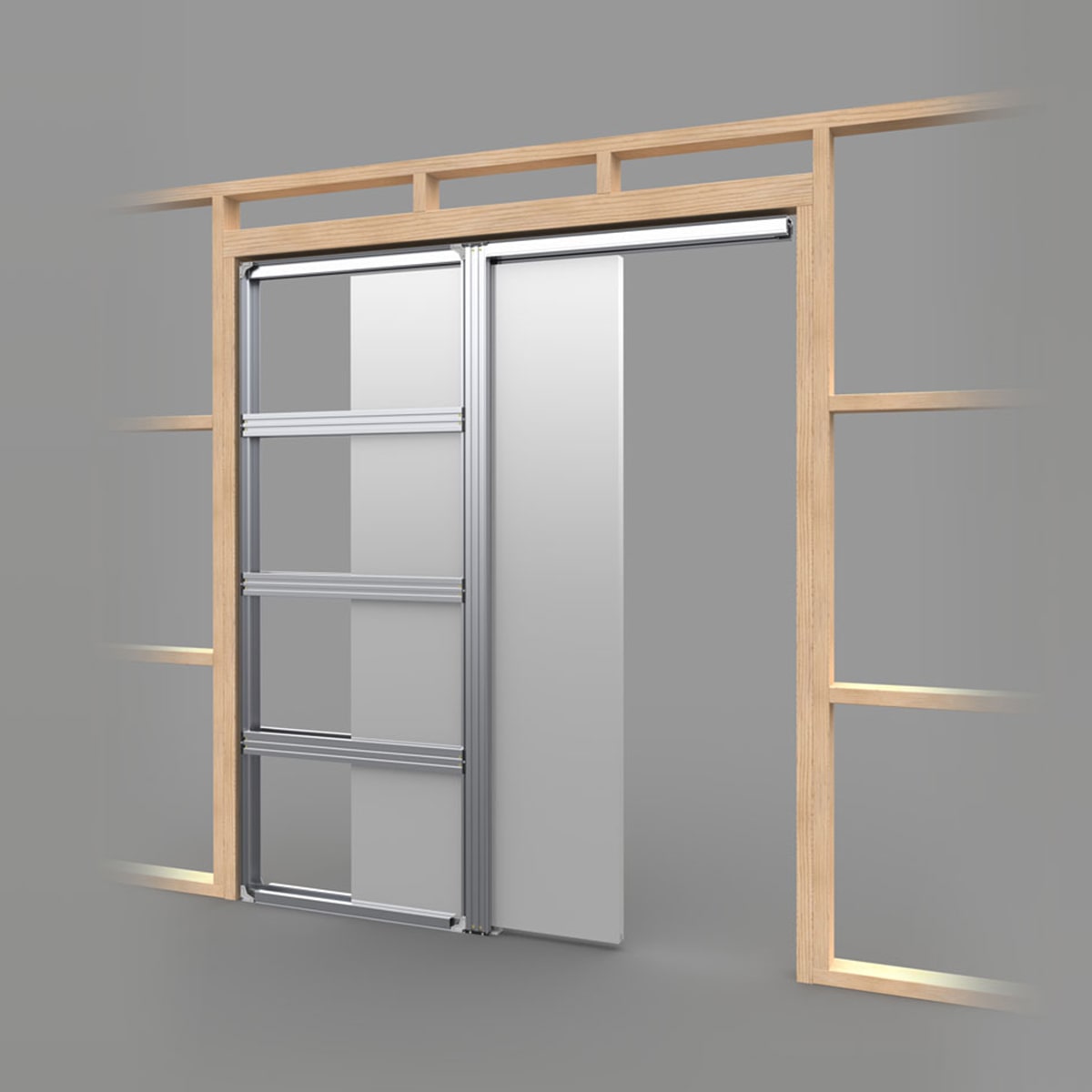

The CS Cavity Slider® Pocket Door Frame is the ideal solution for pocket doors. Easy to assemble and structurally sound, it is specifically designed for 2 x 4 framing (3 1/2" stud size). Note: For 2 x 6 framing see our Ultimate Cavity Slider Frame Kit

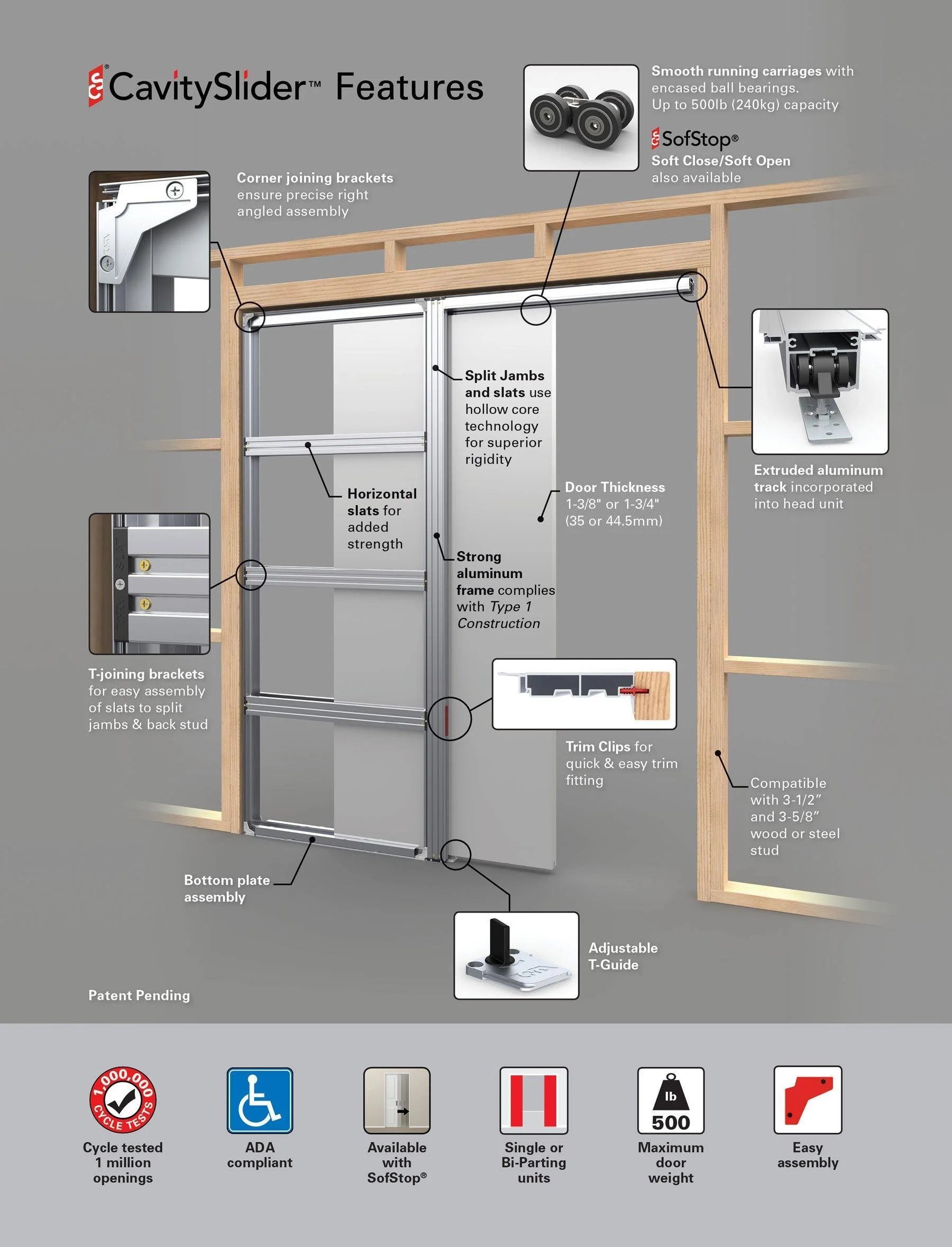

Construction: Made from aluminum extrusions, providing structural robustness.

Easy Assembly: Supplied as a knock down kit-set, easy to assemble and install.

Door Compatibility: Accommodates 1-3/8” and 1-3/4” thick door up to 4’0” x 8’0”; can be cut to size on site. If you doors are heavier than 200lbs, give us a call for the Heavy Duty Pocket Track System (up to 500lbs)

Close Options: PLEASE CHOOSE ONE

M6 (200lb) 1 Track Stop (NO SOFT-STOP) DKM0611
Soft-Stop Double Open & Close Action + 1 Track Stop (200lbs) DKS0711
- Our personal recommendation. You won't regret the additional upgrade!

CS Cavity Slider Pocket Door 4" Frame

$980.00

Step 1. Determine your stud size.

For 2x4 wall framing use the CS Cavity Sliders Pocket Door Frame

For 2x6 wall framing use the CS Cavity Slider Ultimate Pocket Frame.

Step 2. Choose your frame size. Select the frame that most closely matches your door size. Frames can be cut down on-site. Example- a 36" x 96" door use the 3/0 x 8/0 frame.

Step 3. Select your carriage pack. You will need to select one pack per door. Each carriage pack includes carriages, mounting plates, T-Guide, fixing screws, and adjusting wrench.

For standard operation (NONE SOFT OPEN/CLOSE), select M6 (Door Weight: 200lb/90kg)

For Soft Close & Soft Open operation select SofStop Double (Door Weight: 200lb/90kg) (*If you require a kit for a door weight of up to 500lbs please call for order)

How To Specify

Step 1. Determine your stud size.

For 2x4 wall framing use the CS Cavity Sliders Pocket Door Frame

For 2x6 wall framing use the CS Cavity Slider Ultimate Pocket Frame.

Step 2. Choose your frame size. Select the frame that most closely matches your door size. Frames can be cut down on-site. Example- a 36" x 96" door use the 3/0 x 8/0 frame.

Step 3. Select your carriage pack. You will need to select one pack per door. Each carriage pack includes carriages, mounting plates, T-Guide, fixing screws, and adjusting wrench.

For standard operation (NONE SOFT OPEN/CLOSE), select M6 (Door Weight: 200lb/90kg)

For Soft Close & Soft Open operation select SofStop Double (Door Weight: 200lb/90kg) (*If you require a kit for a door weight of up to 500lbs please call for order)

Sizes (Extrusion Cut Lengths)

Before cutting your frame to a custom size, please review these drawing with the recommended lengths to cut your extrusion. Note that drawings reflect 3/4" thick trim and a 1/2" finished floor above frame sill.

Door Height: 8'0"

3'0" x 6'8"

3'0" x 8'0"

4'0" x 8'0"

Technical
